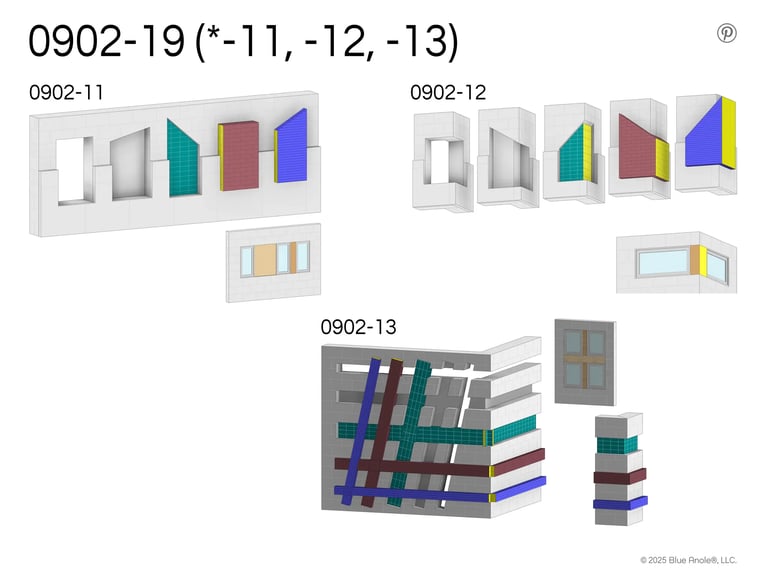

0902-1 VOID Objects with Back Mass/Finish

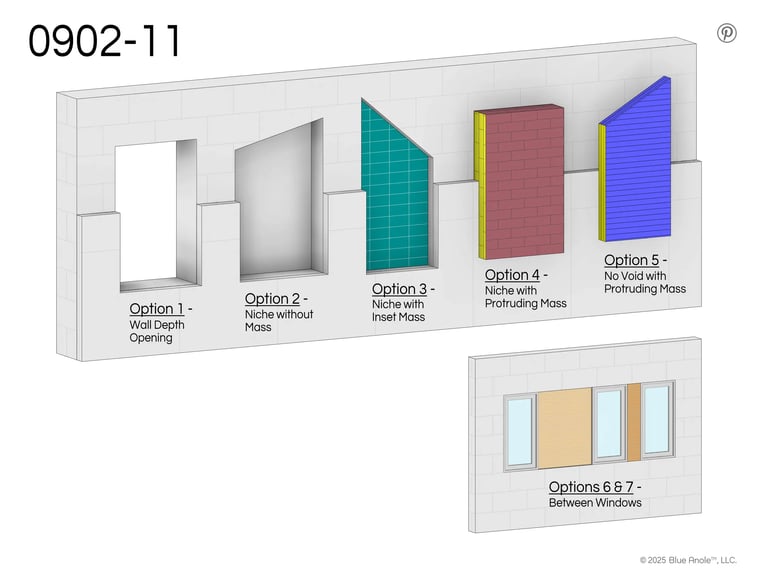

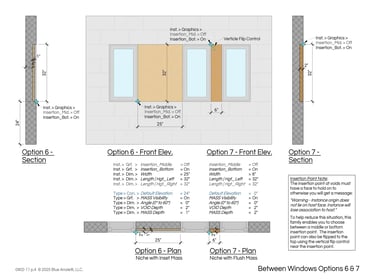

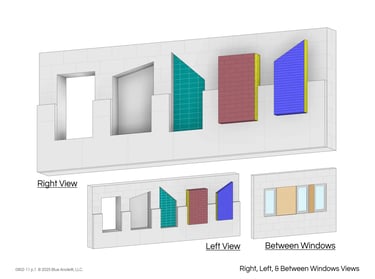

3D illustrations of Revit Family 0902-11 opening or niche with mass back shown in Left, Right views.

3D illustrations of Revit Family 0902-11 opening or niche with mass back shown in Left, Right views.

VOID Opening, Niche &/or Inset or Protruding Mass

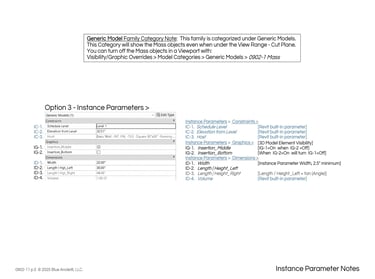

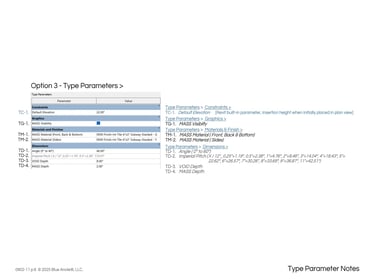

One Parametric Face Based Revit®/LT Family
Family Category: Generic Model

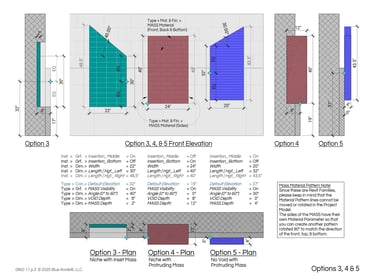

Options: Opening, Niche without Mass, Niche with Inset &/or Protruding Back Mass
Top can be angled 0° to 60°
Great for use between windows!

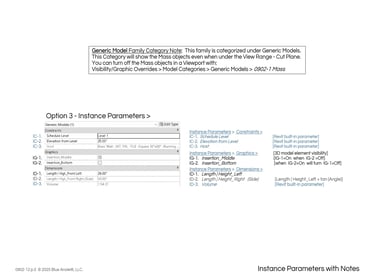

Applicable Quick Tips: Cut Objects with Family, Side Mass/Finish Material, Insertion Point Options, Generic Model Family Visibility

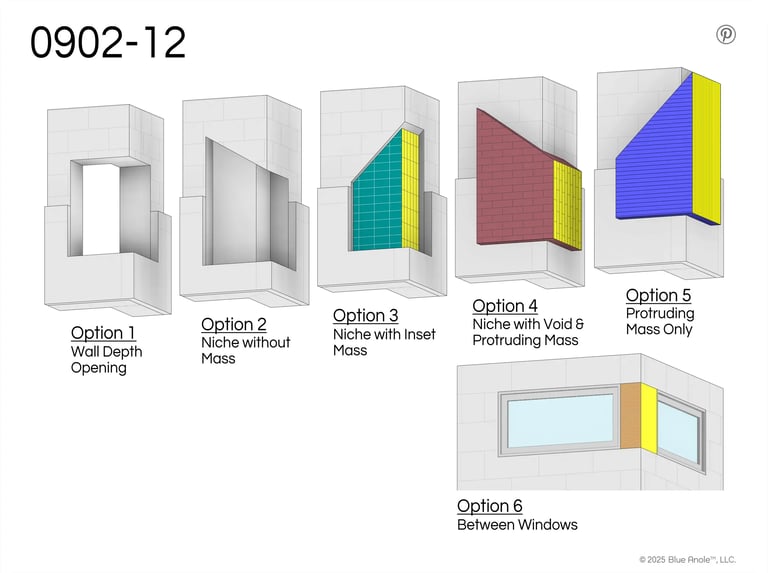

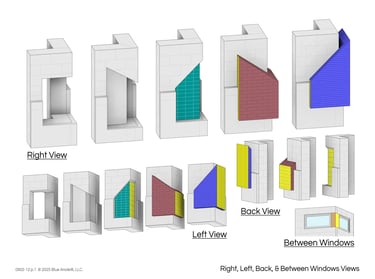

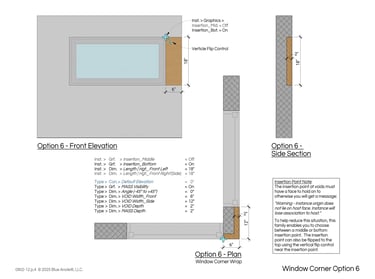

3D views of Revit Family 0902-12 corner opening or niche with mass back shown in Right, Left, Back.

3D views of Revit Family 0902-12 corner opening or niche with mass back shown in Right, Left, Back.

One Face Based Parametric Revit®/LT Family
Family Category: Generic Model
Options: Opening, Niche without Mass, Niche with Inset &/or Protruding Back Mass
Top can be angled -45° to +45°
Great for use between windows!
Applicable Quick Tips: Cut Objects with Family, Side Mass/Finish Material, Insertion Point Options, Generic Model Family Visibility

VOID Corner Opening, Niche &/or Inset or Protruding Mass

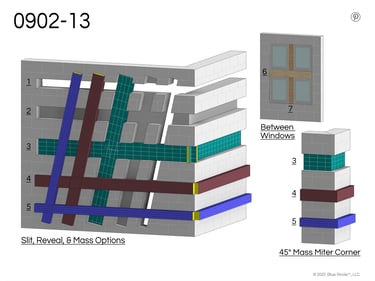

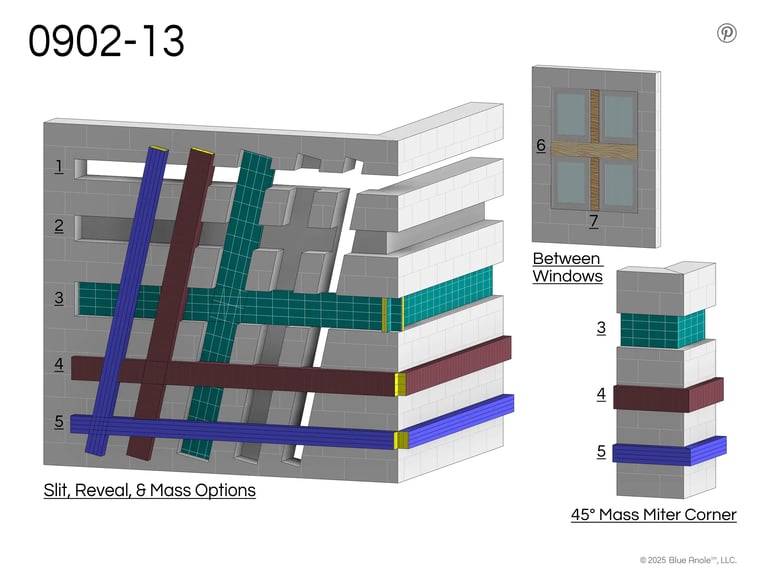

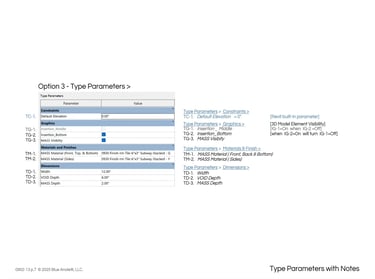

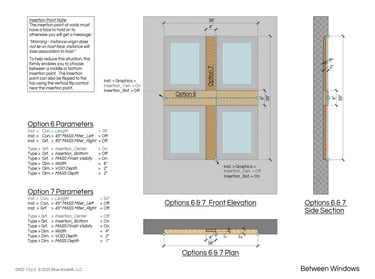

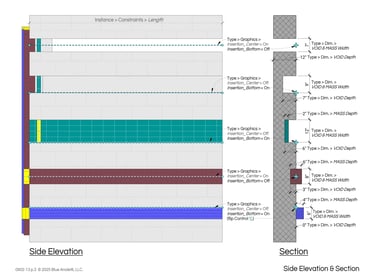

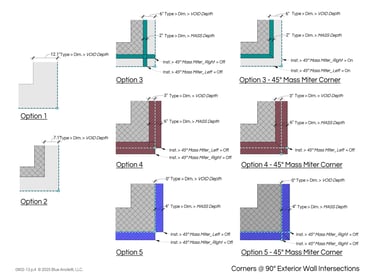

3D illustrations of Revit Family 0902-13 slit or reveal with mass back shown in Front, Corner views.

3D illustrations of Revit Family 0902-13 slit or reveal with mass back shown in Front, Corner views.

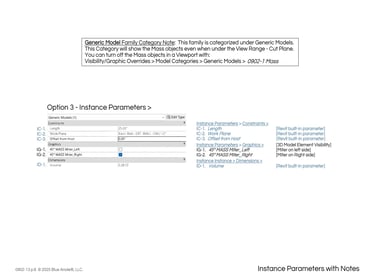

One Parametric Line/Face Based Revit®/LT Family
Family Category: Generic Model

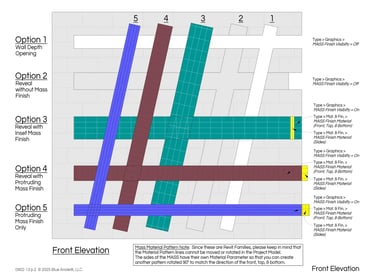

Options: Slit, Reveal with On/Off: Inset
or Protruding Back Mass
45° Mass Miter for 90° Corners
Great for use between windows!
Applicable Quick Tips: Cut Objects with Family, Side Mass/Finish Material, Generic Model Family Visibility

VOID Slit, Reveal &/or Inset or Protruding Mass
