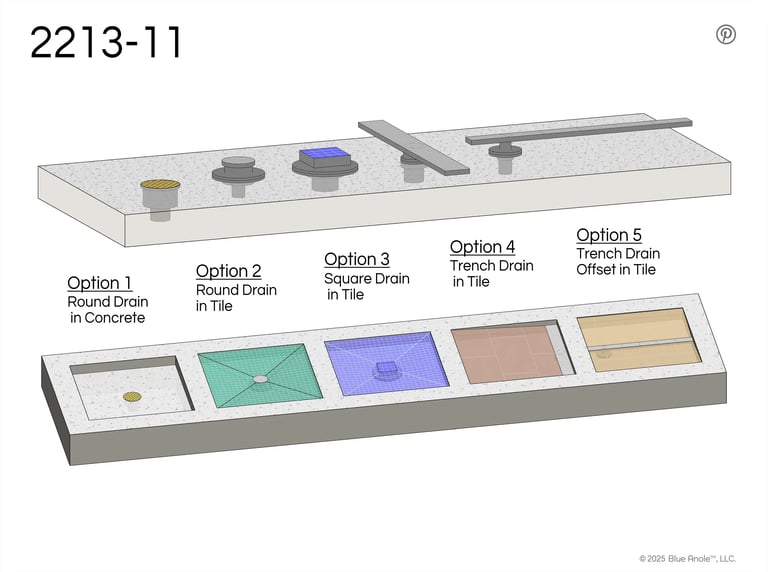

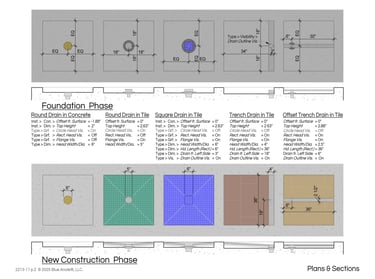

Interior Floor Drain

• One Parametric Face Based Revit®/LT Family

• Family Catagory: Plumbing Fixtures

• Head Options: Circular, Square, Rectangular, & Trench

• Can move Drain location relative to Rectangular Head

• On/Off: Flange

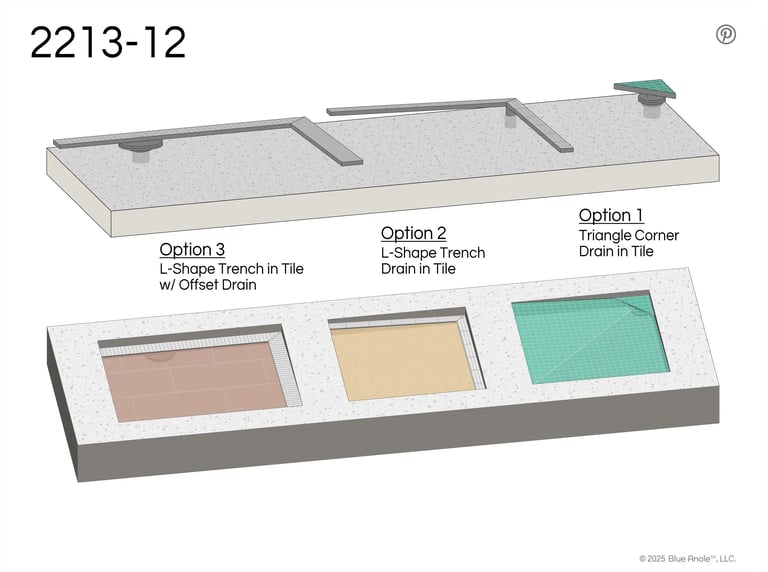

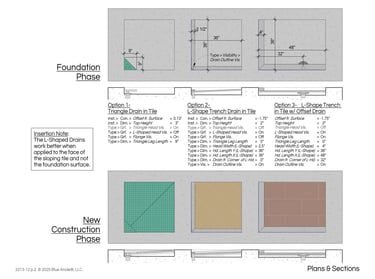

2213-1 Interior Floor Drains

• One Parametric Face Based Revit®/LT Family

• Family Category: Plumbing Fixtures

• Head Options: Triangle, L-Shaped Trench

• Can move Drain location relative to L-Shaped Head

• On/Off: Flange

Interior Floor Drain @ Corner

* Refer to products 2213-11 Interior Floor Drain - Circular or Rectangular & 2213-12 Interior Floor Drain – Corner for more information

• Two Parametric Face Based Revit®/LT Families

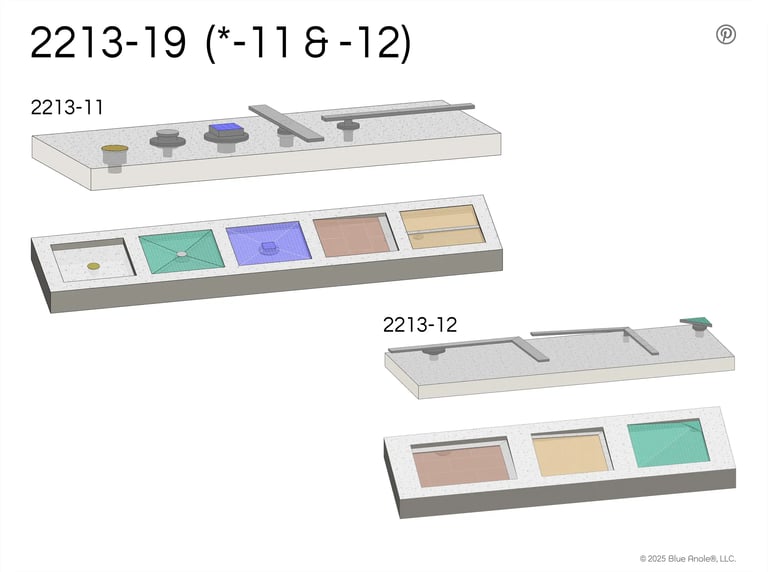

Interior Floor Drain Bundle
