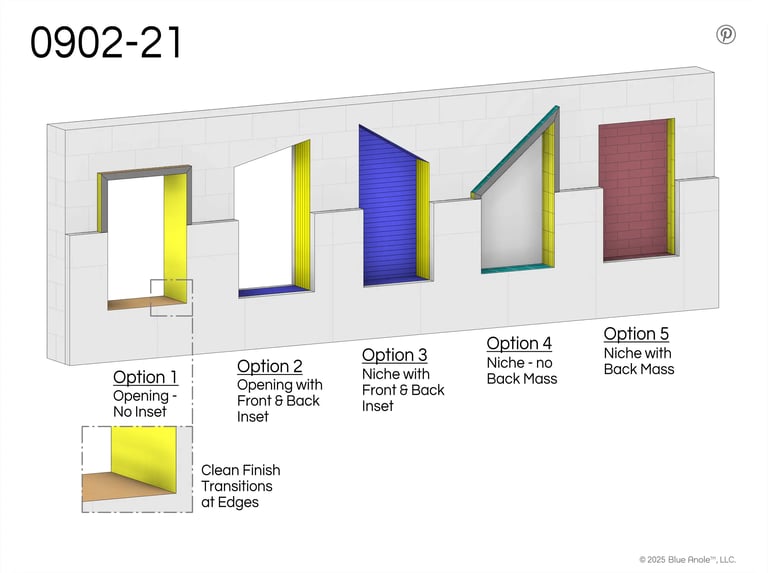

0902-2 & 3 VOID Objects with Side & Back Mass/Finish

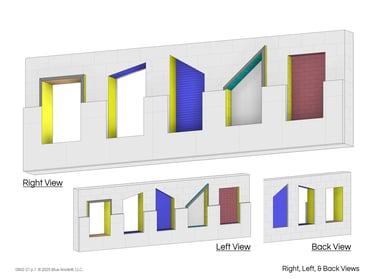

VOID Opening or Niche with Side Finishes &/or Back Mass
One Face Based Parametric Revit®/LT Family
Family Category: Generic Model
Opening/Niche with Side Finishes
On/Off: Back Mass/Finish
Front & Back Insets
Top can be angled 0° to 60°
Clean Finish Transitions at Edges
Applicable Quick Tips: Family Visibility below/above Cut Plane, Cut Objects with Family, Side Mass/Finish Material, Insertion Point Options, Generic Model Family Visibility
0902-2 VOID Objects with Side & Back Mass/Finish
VOID Opening/Niche with Inset/ Outset Side Mass &/or Back Mass
One Face Based Parametric Revit®/LT Family
Family Category: Generic Model
Opening/Niche with Inset/Outset Side Mass/Finishes
On/Off: Back Mass/Finish
Front & Back Insets & Outsets
Top can be angled 0° to 60°
Applicable Quick Tips: Family Visibility below/above Cut Plane, Cut Objects with Family, Side Mass/Finish Material, Insertion Point Options, Generic Model Family Visibility, Mass Outline in Plan Views

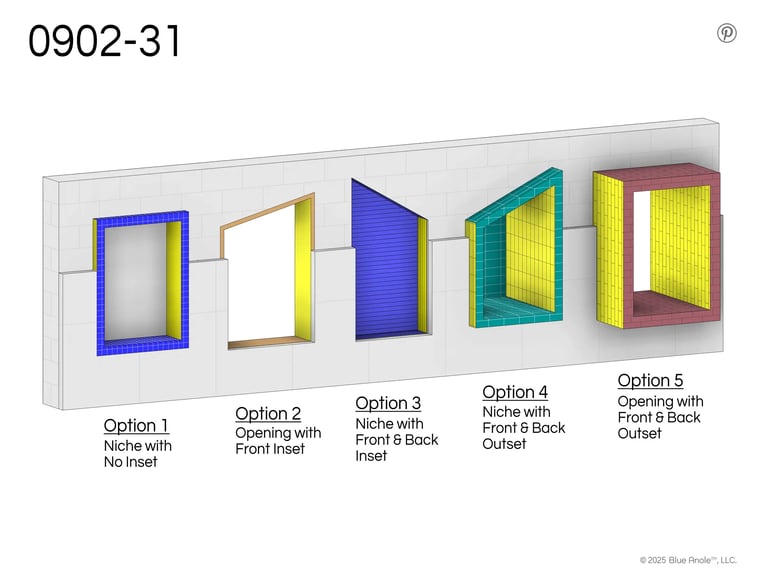

0902-3 VOID Objects with Protruding Side & Back Mass/Finish
