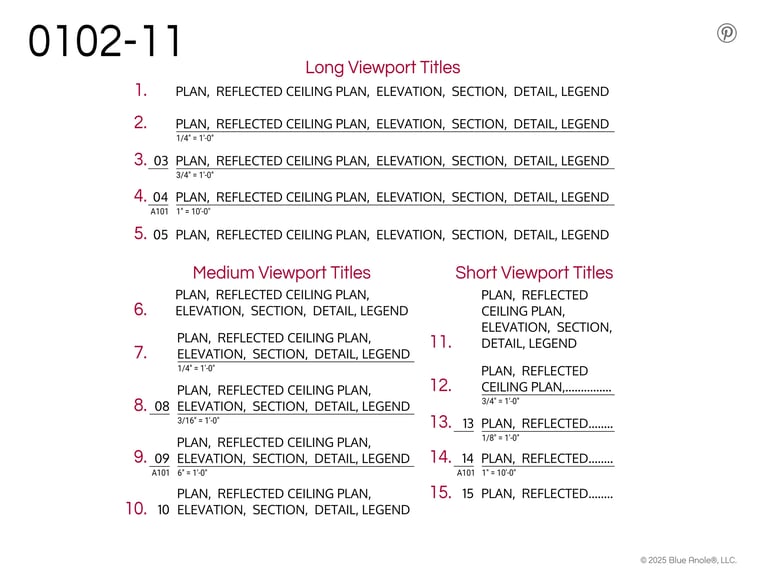

Viewport/View Title

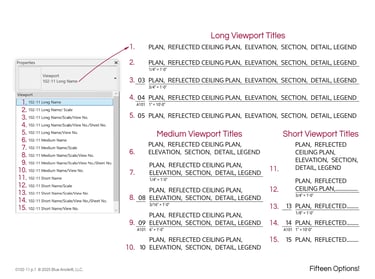

• Fifteen Options

• One Parametric Revit®/LT Family

• Family Category: Annotation Viewport/View Titles

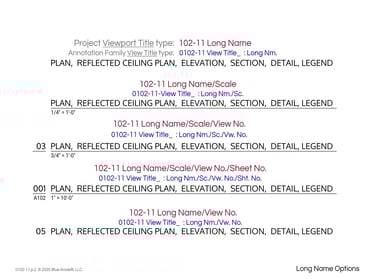

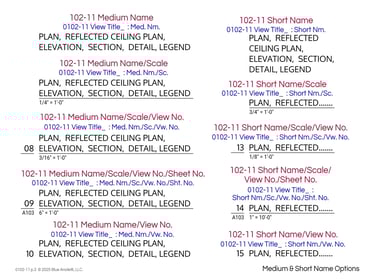

• Three View Name lengths: Long, Medium, or Short

• Turn On or Off: View Name, View Scale, View Number &/or Number Line

• Applicable Quick Tips: Families & Parameters, Project Installation, & Text Modification

0102-1 Viewport/View Titles

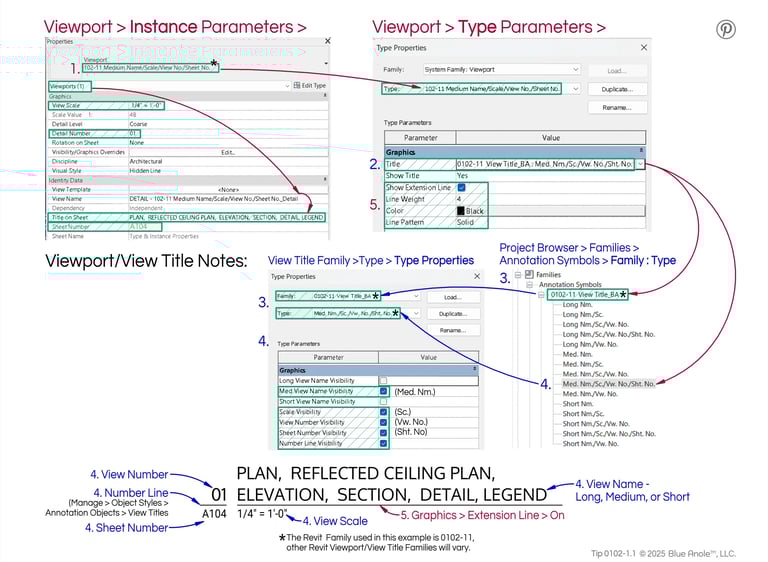

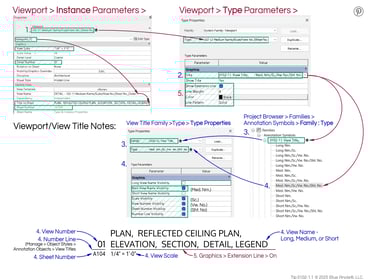

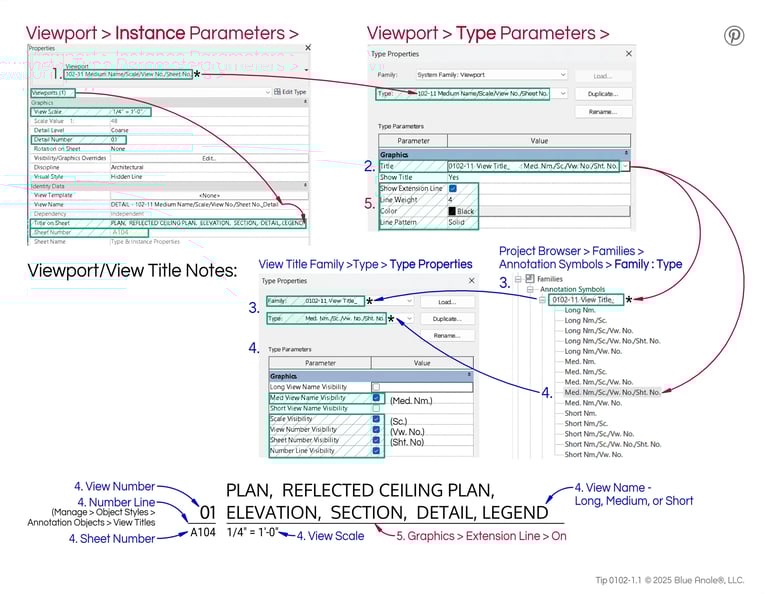

Viewport/View Title Families & Parameters

* The Revit Family used in this example is 0102-11, other Viewport/View Titles may vary.

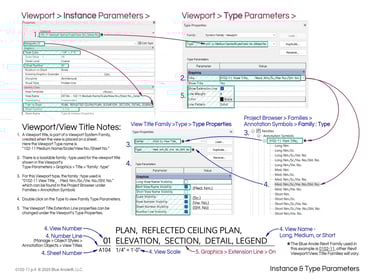

Viewport/View Title Parameter Notes:

1. A Viewport title, is part of a Viewport System Family, created when the view is placed on a sheet.

   Here the Viewport Type name is

   “102-11 Medium Name/Scale/View No./Sheet No.” *

2. There is a loadable family : type used for the viewport title shown in the Viewport's

   Type Parameters > Graphics > Title > "family : type"

3. For this Viewport type, the family : type used is

   "0102-11 View Title_BA : Med. Nm./Sc./Vw. No./Sht. No.*

   which can be found in the Project Browser under

   Families > Annotation Symbols


4. Double click on the Type to view Family Type Parameters.

5. The Viewport Title Extention Line properties can be changed under the Viewport's Type Properties.

Tip 0102-1.1

Viewport > Instance Parameters >

Viewport > Type Parameters >

Project Browser > Families >

Annotation Symbols > Family : Type

View Title Family >Type > Type Properties

Viewport/View Title Project Installation

* The Revit Family used in this example is 0102-11, other Viewport/View Titles may vary.

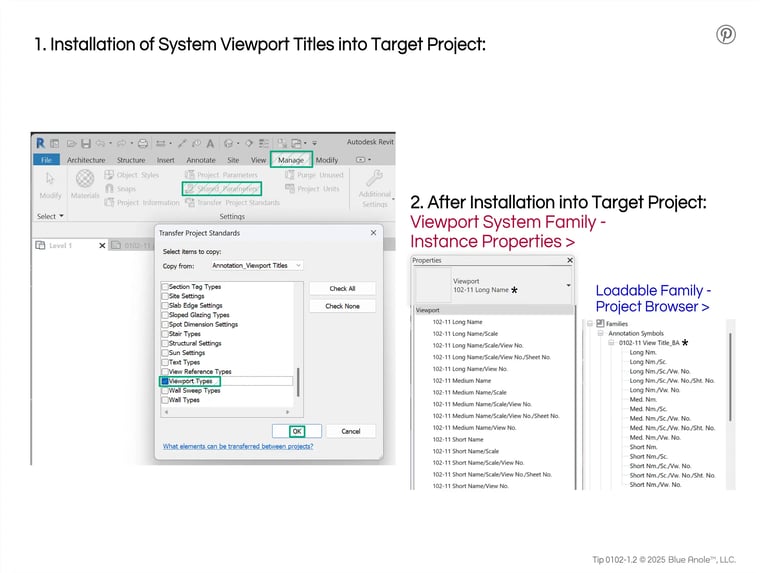

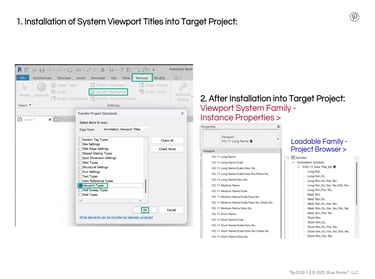

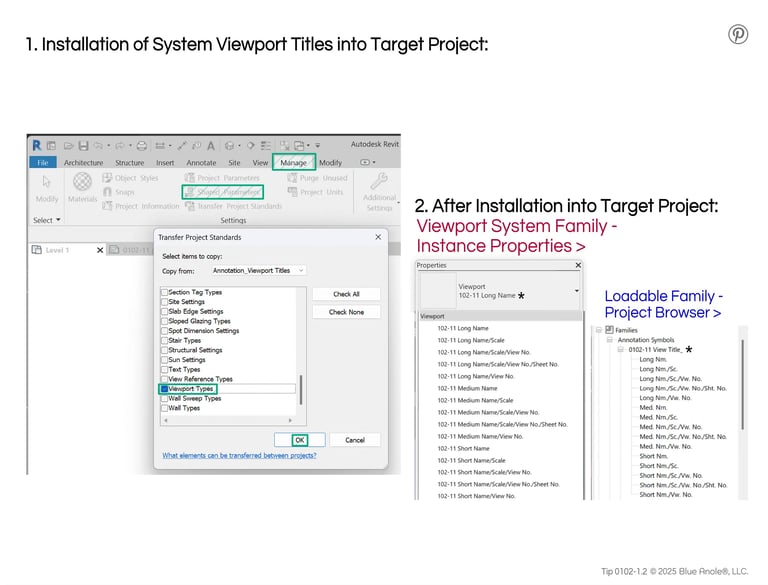

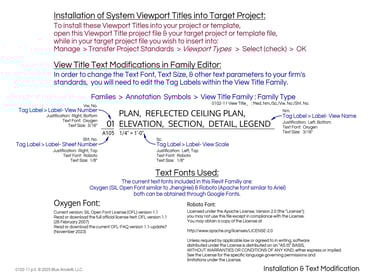

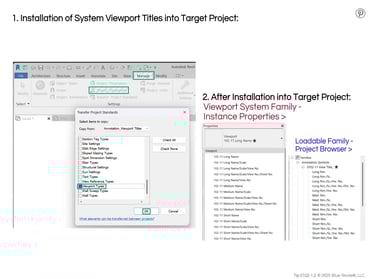

1. Installation of Viewport Titles into Project:

To install these Viewport Titles into your project or template, open this Viewport Title project file & your target project or template file. While in your project file you wish to insert into: Manage > Transfer Project Standards > Viewport Types > Select (check) > OK

Tip 0102-1.2

2. After Installation into Target Project: *

Viewport System Family -

Instance Properties >

Loadable Annotation Family -

Project Browser >

Text Modification of View Title Family

* The Revit Family used in this example is 0102-11, other Viewport/View Titles may vary.

Tip 0102-1.3

2. Loadable View Title Family Example: *

Famlies > Annotation Symbols > View Title Family : Family Type (0102-11 View Title_BA : Med. Nm./Sc./Vw. No./Sht. No.)

2. Sc.

Tag Label > Label- View Scale

Justification: Left, Top

Text Font: Roboto

Text Size: 1/8"

1. Nm.

Tag Label > Label- View Name

Justification: Left, Bottom

Text Font: Oxygen

Text Size: 3/16"

3. Vw. No.

Tag Label > Label- View Number

Justification: Right, Bottom

Text Font: Oxygen

Text Size: 3/16"

4. Sht. No.

Tag Label > Label- Sheet Number

Justification: Right, Top

Text Font: Roboto

Text Size: 1/8"

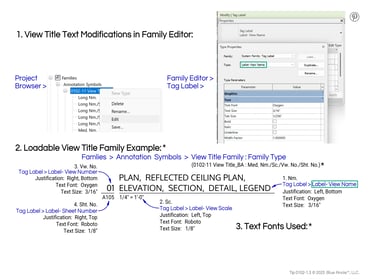

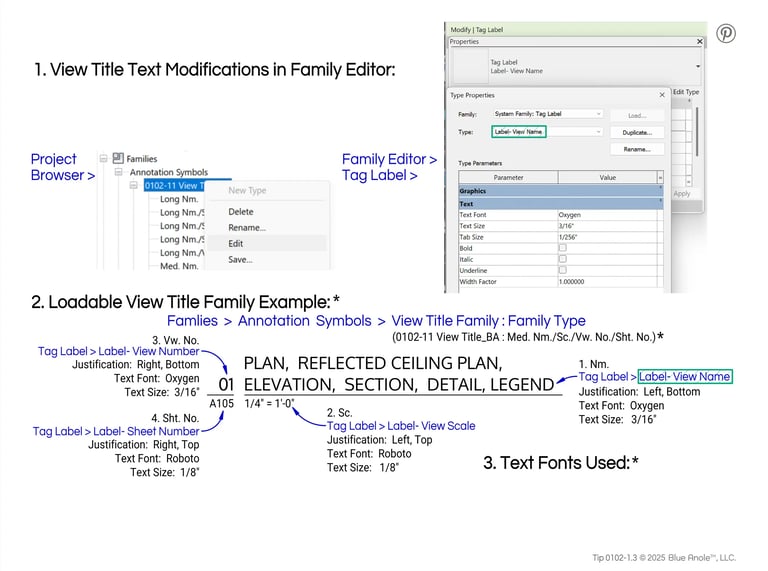

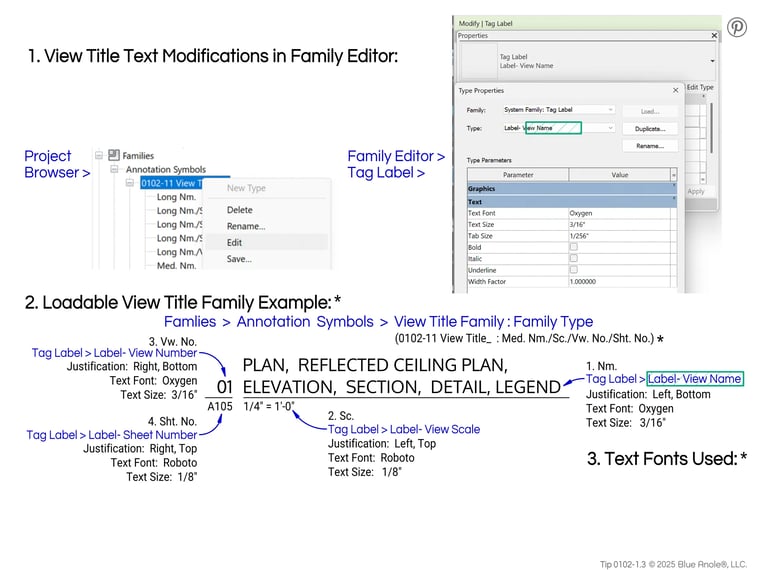

1. View Title Text Modifications in Family Editor:

In order to change the Text Font, Text Size, & other text parameters to your firm's standards, you will need to edit the Tag Labels within the View Tile Family.

Project Browser >

Family Editor >

3. Text Fonts Used: *

The current text fonts included in this Revit Family are:

Oxygen (SIL Open Font similar to JhengHei) & Roboto

(Apache font similar to Ariel) both can be obtained through Google Fonts.
